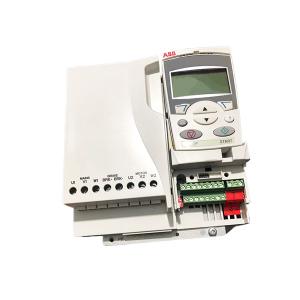

Designed as the core of modern machine control systems, the ABB ACS355-03E-23A1-4 transcends conventional variable frequency drives (VFDs) by integrating safety-certified architecture, programmable automation, and precision motor control in a compact 11 kW (23.1 A) package. Tailored for OEMs and system integrators in material handling, packaging, and processing industries, this 400V-class drive combines SIL 3 safety with embedded sequencing to reduce reliance on external PLCs—slashing costs and complexity in automated machinery39.
Unlike generic VFDs, the ACS355-03E-23A1-4 incorporates dedicated mechanical sequencing capabilities. Its integrated 8-step sequencer (expandable to 16 steps) enables standalone automation of repetitive operations—such as conveyor indexing, filling cycles, or clamping sequences—without additional controllers. This reduces component count by up to 30% in compact machines like labeling systems or palletizers39. For time-based operations, the optional real-time clock (with assistant control panel ACS-CP-A) triggers actions like scheduled lubrication or production shifts.
Precision Motor Control:
Supports both asynchronous motors and permanent magnet synchronous motors (PMSMs) via sensorless vector control, achieving speed regulation accuracy within ±0.2% of base speed.
Torque response times under 50 ms enable precise tension control in winding applications.
Integrated Safety:
Safe Torque Off (STO) certified to SIL 3/PL e (IEC 61800-5-2) halts torque generation within 20 ms via redundant hardware. Safety terminals (X1C:STO) accept dual-channel emergency stop signals from light curtains or safety relays.
Dynamic Braking & Efficiency:
Built-in brake chopper (requires external resistor) converts kinetic energy during deceleration—critical for stopping high-inertia loads like centrifuges or saw blades.
Flux optimization algorithms reduce motor losses by 8–12% at partial loads.
Seamless Integration:
Embedded Modbus RTU (RS-485) enables direct PLC communication without adapters.
Snap-on fieldbus modules (e.g., FENA-01 for EtherNet/IP, FPBA-01 for PROFIBUS DP) support integration into PROFINET, CANopen, or DeviceNet networks.
Rapid Deployment Tools:
FlashDrop™ technology programs drives before power-up using a handheld tool—ideal for production-line commissioning of multiple units.
Preloaded application macros (ABB Standard, PID, 3-Wire, etc.) auto-configure I/O mappings for 90% of standard applications via parameter 9902.
Robust Design:
-10°C to +40°C operating range (with derating >40°C) ensures stability in unregulated environments like woodshops or warehouses.
IP20 touch-safe enclosure prevents accidental contact with live parts.
Predictive Diagnostics:
Maintenance triggers monitor parameters like current harmonics or bearing frequencies, alerting to issues before failure9.
Fault history log stores the last 10 faults with timestamps for rapid troubleshooting.
Food & Beverage Conveying: In a bottling plant, three ACS355-23A1-4 drives synchronized via Modbus RTU eliminated product misalignment by maintaining ±0.1 Hz speed matching across 50-meter conveyors. STO circuits integrated with sanitization-door interlocks ensured compliance with ISO 13849.
Textile Winding Machines: Using the built-in sequencer, the drive automated yarn tensioning cycles—reducing PLC scan times by 40%. PMSM control enabled 200% starting torque for thread-break prevention.
*Table 1: Key Technical Parameters of ACS355-03E-23A1-4*
| Parameter | Specification | Application Implication |
|---|---|---|
| Output Power/Current | 11 kW / 23.1 A | Drives 15 HP motors under vector control |
| Input Voltage | 3-phase 380–480 V AC ±10% | Compatible with global industrial grids |
| Overload Capacity | 150% for 60s, 180% for 2s | Handles inertial starts in crushers/mixers |
| Control Modes | Scalar, Sensorless Vector | Optimizes efficiency for pumps or precision for extruders |
| Communication | Embedded Modbus RTU + fieldbus options | Future-proof for IIoT upgrades |
| Safety Certification | SIL 3/PL e (STO) | Meets machinery safety directives |
| Sequencing | 8-step (16-step optional) | Replaces basic PLCs in automata |
| Dimensions (H×W×D) | 236 mm × 169 mm × 195 mm | Saves panel space; unified sizing for multi-drive cabinets |
The ABB ACS355-03E-23A1-4 redefines compact drives by merging machine safety, embedded control, and motor versatility into a single IP20 chassis. Its 23.1 A output targets high-utilization applications—from PMSM-driven servo conveyors to asynchronous mixer motors—while reducing integration costs through sequencer-based automation. For OEMs seeking to simplify machine architectures without compromising safety or precision, this drive delivers a validated technical and economic advantage.
